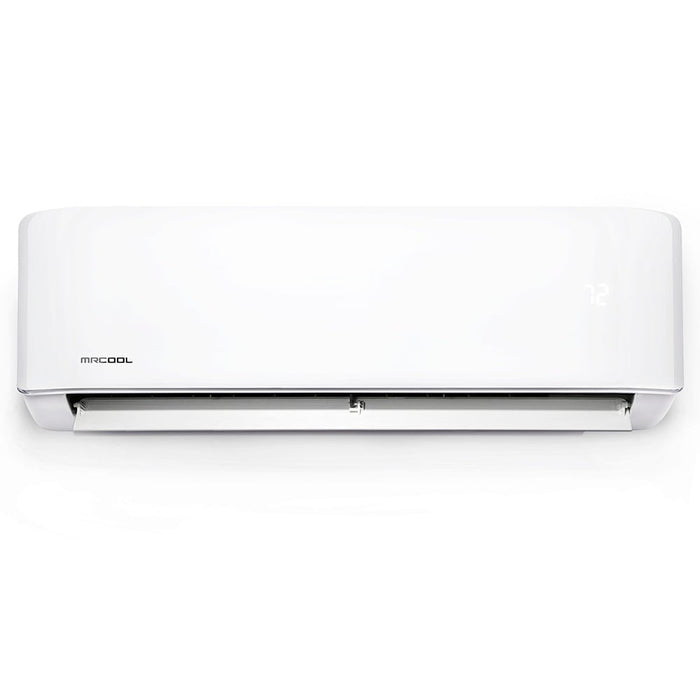

MRCOOL Advantage 3rd Gen 36,000 BTU 3 Ton Ductless Mini-Split Air Conditioner and Heat Pump
MRCOOL Advantage 3rd Gen 36,000 BTU 3 Ton Ductless Mini-Split Air Conditioner and Heat Pump 230-Volt/60Hz
Description:
This system is meant to be installed by a HVAC technician.
Meet the MRCOOL Advantage Series 36,000 BTU Heat Pump Condenser & Wall Mount Air handler 230 volt 16 SEER with Enhanced WiFi (Works with Alexa, Works with Google Assistant) and 16ft line set install kit.
The newly designed 3rd generation Advantage Series, with improved efficiency ratings up to 16 SEER, delivers high-performance comfort from the moment it's activated. Its competitive price makes it a consumer favorite that's tough to beat.
The MRCOOL Advantage condenser and wall-mounted air handler is an ideal combination of superior product quality, energy efficiency, quiet operation, and financial value. The condenser incorporates a high-performance compressor with eco-friendly, chlorine-free R-410A refrigerant.
The MRCOOL Advantage is the clear choice for consumers who want to combine superior interior comfort with environmentally friendly technology. The MRCOOL Advantage now includes the new SmartHVAC WiFi control module that features an easier setup process, improved functionality, and works with Amazon Alexa and Google Assistant.
Features:
- Installation kit included,
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion,
- The new 3rd generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.,
- Installation by a licensed professional required where applicable,
- 1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional,
- R-410A environmentally friendly refrigerant,
- Sleep mode, louver position memory, and auto restart functions,
- Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor
- Installation kit included (16ft line, copper tubing, control wire, 6 ft. drain hose, wall sleeve)
- 16 SEER
- 3 Ton
- Max Coverage Area: 1500 sq. ft.
- Gold fin condenser: corrosion-resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Sleep mode, louver position memory, and auto restart functions
- Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor
- 1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
- This system is meant to be installed by an HVAC technician.
- Model #: A-36-HP-230B
Specifications:
Dimensions
- Air handler depth (in.): 18
- Air handler height (in.): 15
- Air handler width (in.): 31.1
- Condenser depth (in.): 20
- Condenser height (in.): 35
- Condenser width (in.): 43
Details
- Air Conditioner Product Type: Mini Split Unit
- Air direction/circulation: 1-way
- Air handler weight (lb.): 60
- Amperage (amps): 35
- BTU Cooling Rating: 36000
- BTU Cooling Rating: 36000 BTU
- BTU Heat Rating: 36000 BTU
- BTU Heat Rating: 36000
- Color: White
- Color Family: White
- Color/Finish: White
- Condenser weight (lb.): 175
- Coverage Area (sq. ft.): 1500
- Decibel (Sound) Rating: 54 dBA
- Decibel Rating: 54 dBA
- Filter Type: Reusable
- Included: Remote Control,Self-diagnostic tools
- Line Set Length (ft.): 16
- Mini Split Features: Auto cool,Defrost,Fan only option,Mobile App,Overload protection,Wifi,Wireless remote control
- Minimum Outdoor Temperature (F): 5 F
- Mount Location: Wall Mount
- Number of cool settings: 36000
- Number of Fan Speeds: Variable
- Pack Size: 1
- Returnable: 90-Day
- Voltage (v): 208/230v
- Voltage (volts): 208/230
- Wattage (watts): Not Measured
- Zone Capacity: Single Zone
Warranty / Certifications
- Certifications and Listings: AHRI Certified,CSA Listed,ETL Listed,UL Listed
- Manufacturer Warranty: 1-Year Compressor, 2-Year Parts and 1-Year Remote
- Seasonal Energy Efficiency Ratio (SEER): 16
